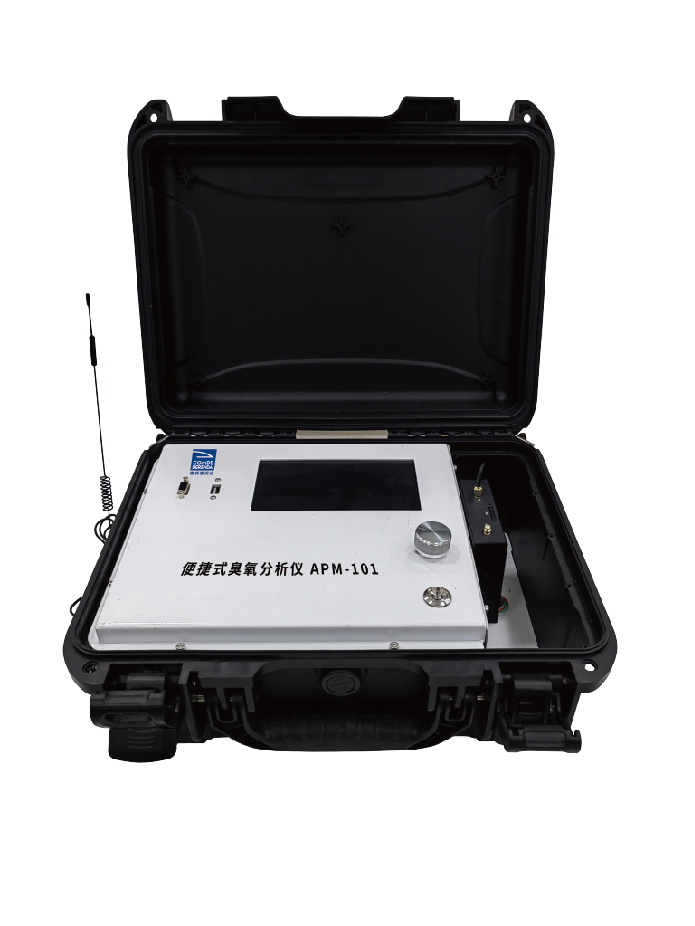

The APM-101 is specially designed to monitor the ozone concentration in the air, and the instrument uses standard UV absorption technology and microprocessor control.
应用
The APM-101 is specially designed to monitor the ozone concentration in the air, and the instrument uses standard UV absorption technology and microprocessor control.
Fast response speed, high measurement accuracy, good stability and repeatability, users can customize and set the parameters, the operation is easy and convenient.
-Real-time compensation of temperature and pressure is suitable for stable and accurate monitoring under different environmental conditions.
-Portable, can be adapted to a variety of monitoring instruments for VOCs, PM2.5 and ozone collaborative monitoring and management.
|
operational principle |
UV absorption, Single light road |
|
Measurement Range: (0-500)μg/m3 |
Resolution : 0.1μg/m3 |
|
Precision : ±2μg/m3 |
Detection limit: 2.0μg/m3 |
|
Baselinedrift: <3μg/m3/day<6μg/m3/year |
Sensitivity drift: <1%/day，<3%/year |
|
Data average: 10s,1 min,5 min,1 h |
Measurement time and frequency: 2s,0.5 Hz |
|
Temperature and pressure calibration: Standard features |
Measurement unit: ppb、μg/m3 |
|
Flow: Minimum 0.6 L/min; maximum 1.5 L/min; rated 1 L / min |
Data storage capability: >10000 |
|
Temperature:(-30-50)°C |
Dimensions (W x H x D):420×320×180mm |
|
Optional: lithium battery |
Weight: 7kg |
